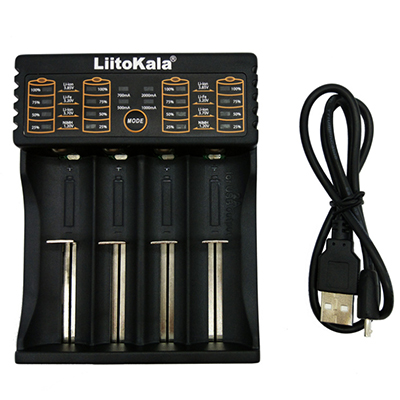

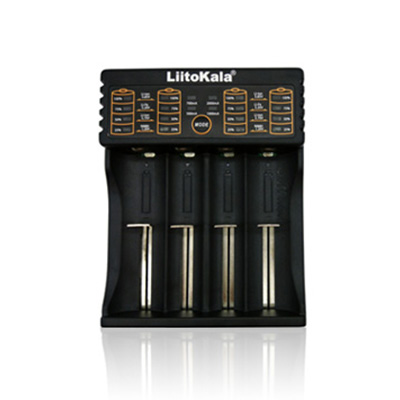

Lii-402

features:


1. Input : Micro USB DC 5V/2A

2. Output:   1.42V

4.2V±0.05V,

3.65±0.05V

4.35±0.05V

3. Current: 2000mA*1 1000mA*2 700mA*3 500mA*4

4. Constant voltage, cut-off current: less than 100mAh

5. Standby current: less than 15mAh


  • Technical Specification

Technical specification

1. Input : Micro USB DC 5V/2A

2. Output:   1.42V

4.2V±0.05V,

3.65±0.05V

4.35±0.05V

3. Current: 2000mA*1 1000mA*2 700mA*3 500mA*4

4. Constant voltage, cut-off current: less than 100mAh

5. Standby current: less than 15mAh



USB Output function

1. 0pen-circuit voltage of USB output : 4.9-5.3V; and the 4th slot is fixed for the USB discharge power source

2. Output current: 1000mAh

3. Open circuit current: <1mAh

4. The corresponding voltage is 4.75-5.25V under 1000mAh current

5. Cut-off voltage for discharge protection: 3.0±0.1V

6.Compatibility: Li-ion/IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440

7. Size: 112mm x 90mm x 30mm (L x W x H)

Weight:  150 grams (incl. micro cable)
